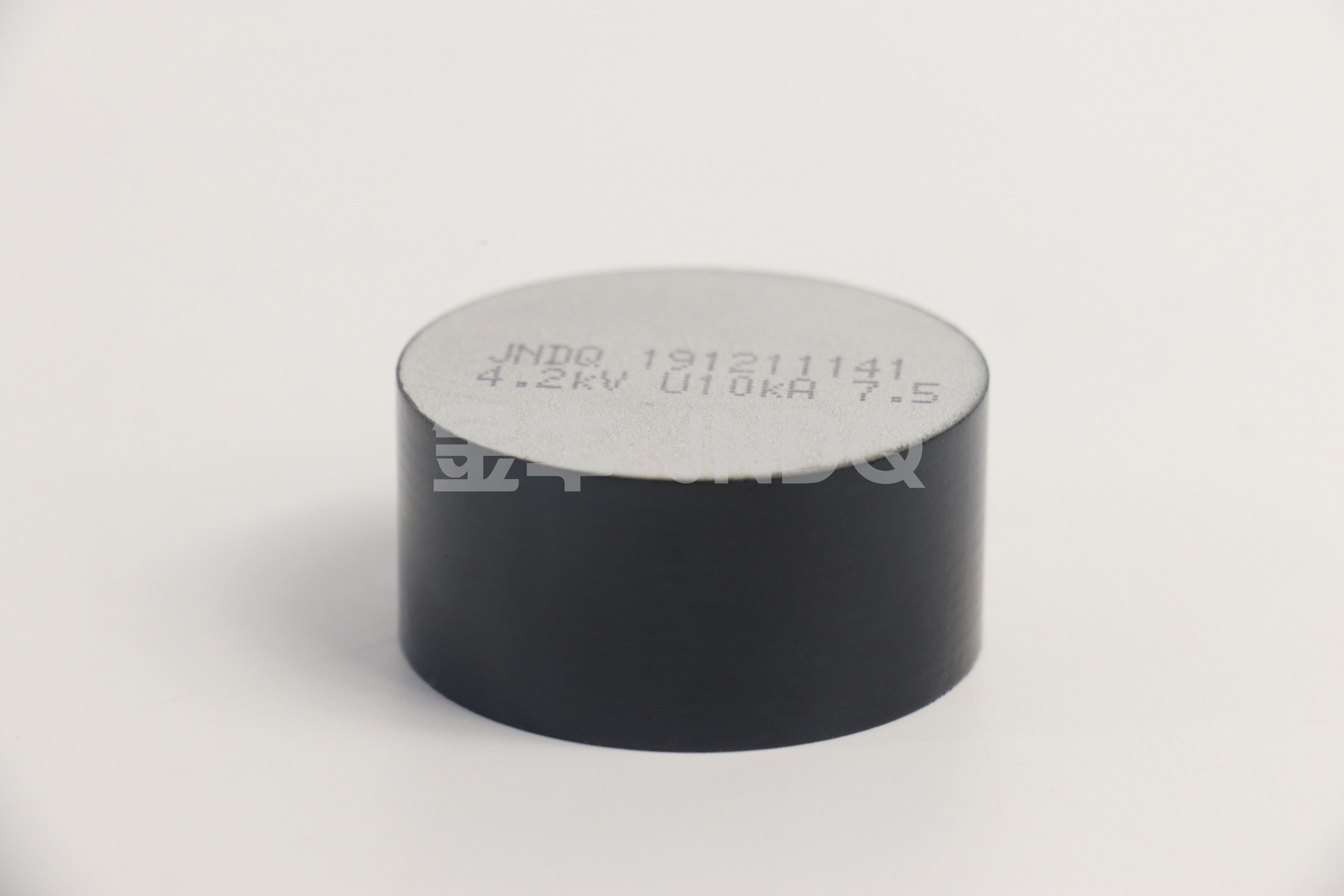

DH Type Metal Oxide Varistor

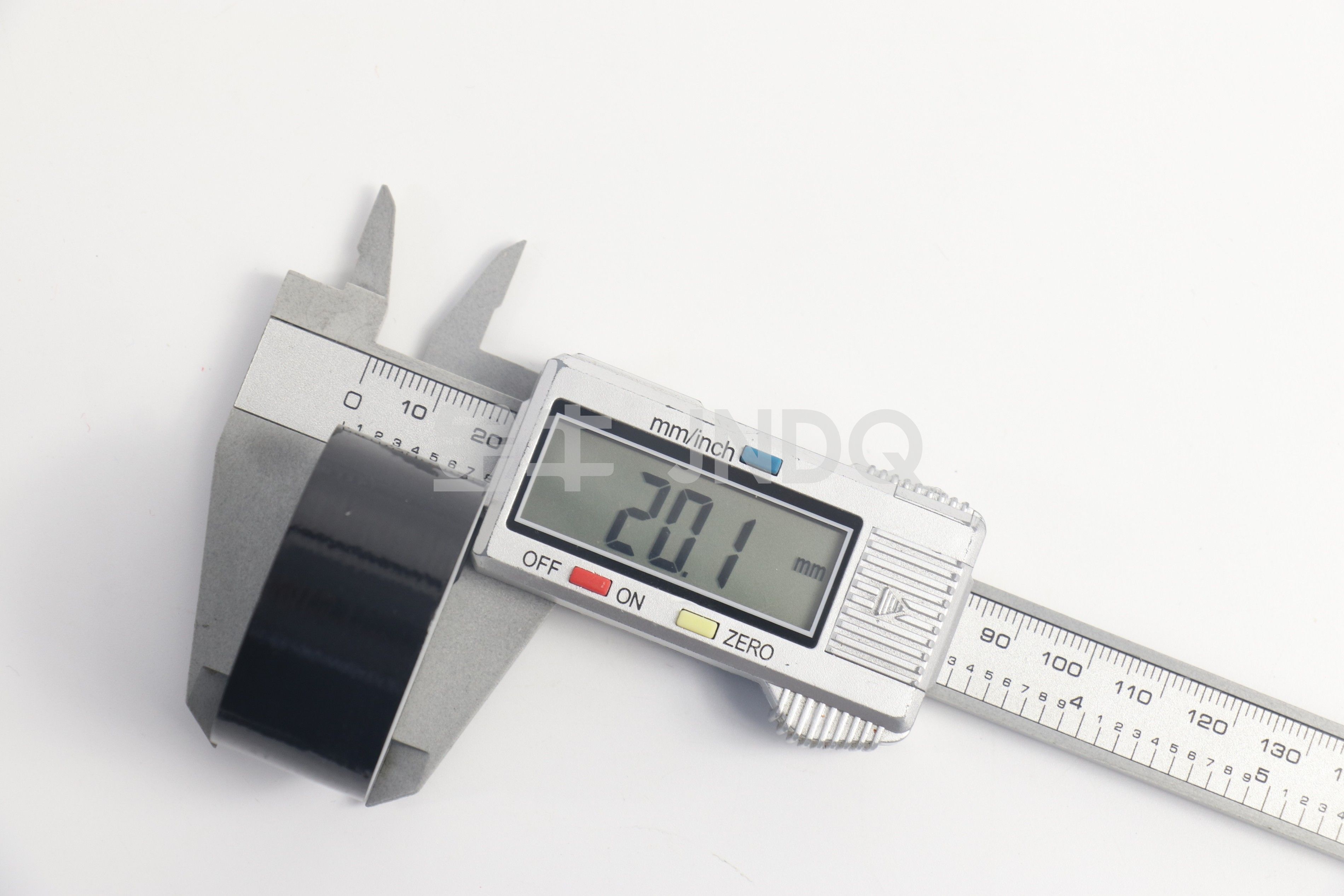

D42*H20
Product Description
| Specification | Diameter | Thickness | D.C. reference voltage (U1mA) | Leakage current under 75%U1mA | Max. ratio of residual voltage (8/20us) | Current impulse withstand capability | Recommended rated voltage | Maximum energy absorption capacity | Recommended continuous operating voltage | |
| 4/10us | 2ms | |||||||||
| mm | mm | kV | uA | at 5kA | kA | A | kV | kJ/kVr | kV | |
| MOV36.5×20 | 36.5±0.5 | 20±0.5 | 4.0-4.8 | <10 | 1.88 | 100 | 300 | 3 | 3.2 | 2.4 |
| MOV36.5×24 | 36.5±0.5 | 24±0.5 | 5.0-5.8 | <10 | 1.88 | 100 | 300 | 3.8 | 3.2 | 3 |
| MOV36.5×30 | 36.5±0.5 | 30±0.5 | 6.2-7.0 | <10 | 1.88 | 100 | 300 | 4.5 | 3.2 | 3.6 |
| MOV40×20 | 40±0.5 | 20±0.5 | 4.0-4.8 | <10 | 1.85 | 100 | 400 | 3 | 3.3 | 2.4 |
| MOV40×30 | 40±0.5 | 30±0.5 | 6.2-7.0 | <10 | 1.85 | 100 | 400 | 4.5 | 3.3 | 3.6 |
| MOV40×40 | 40±0.5 | 40±0.5 | 8.2-9.4 | <10 | 1.85 | 100 | 400 | 6 | 3.3 | 4.8 |
| MOV42×20 | 42±0.5 | 20±0.5 | 4.0-4.8 | <10 | 1.81 | 110 | 400 | 3 | 3.49 | 2.4 |
| MOV42×24 | 42±0.5 | 24±0.5 | 5.0-5.8 | <10 | 1.81 | 110 | 400 | 3.49 | 3 | |
| MOV42×30 | 42±0.5 | 30±0.5 | 6.2-7.0 | <10 | 1.81 | 110 | 400 | 4.5 | 3.49 | 3.6 |
Product features:
2 spray granulator
40m the longest kiln in China
Certification: ISO9001 & 14001 & CQC, etc
Fine all aluminum electrode
Over voltage and high current withstand capacity
Low leakage current (under continuous operating voltage)
High quality nonlinear characteristics
Comply with GB / IEC / IEEE and other standards
Resistor can be connected in series flexibly
Resistor 100% fully aged
